Catalogue 2026 · free PDF
The Minh Thanh Plywood catalogue is a 10-page PDF of the furniture and interior plywood we make in Ha Hoa, Phu Tho: eight face veneers shown as full sheets, Styrax and Eucalyptus cores, 3–40 mm at ±0.2 mm, the panel most customers order and the documents behind it. Download the plywood catalog PDF free. There is no form, no e-mail field and no sign-up.
What the catalogue covers
The PDF covers our main line, furniture and interior plywood, from face to paperwork. Commercial, packing and construction panels are quoted from their own pages, because their faces, glues and grades differ.
In the PDF, pages 3–7
Poplar, EV (engineered veneer), Birch, Pine, Eucalyptus, Okoume, Bintangor and Gurjan faces on white Styrax or Eucalyptus cores, stitched both ways, pressed twice and sanded smooth. This is the line the factory is built for, with Europe as its main market.
Quoted from the product pages
Bintangor-faced commercial panels and packing plywood for crates, pallets and backing parts. Faces and grades follow the use, so we price them from your specification rather than from a fixed sheet.
Quoted from the product pages
Film-faced and anti-slip panels on Acacia or Eucalyptus cores, exterior plywood with phenolic (WBP) glue, and LVL. Each one is quoted to the glue, face weight and thickness your site needs.
Page by page
Every page is below at full size. Tap a page to read it, then download the PDF for your purchasing file; it prints cleanly on A4.
Furniture and interior plywood: eight faces, 3–40 mm and the documents behind them at a glance.

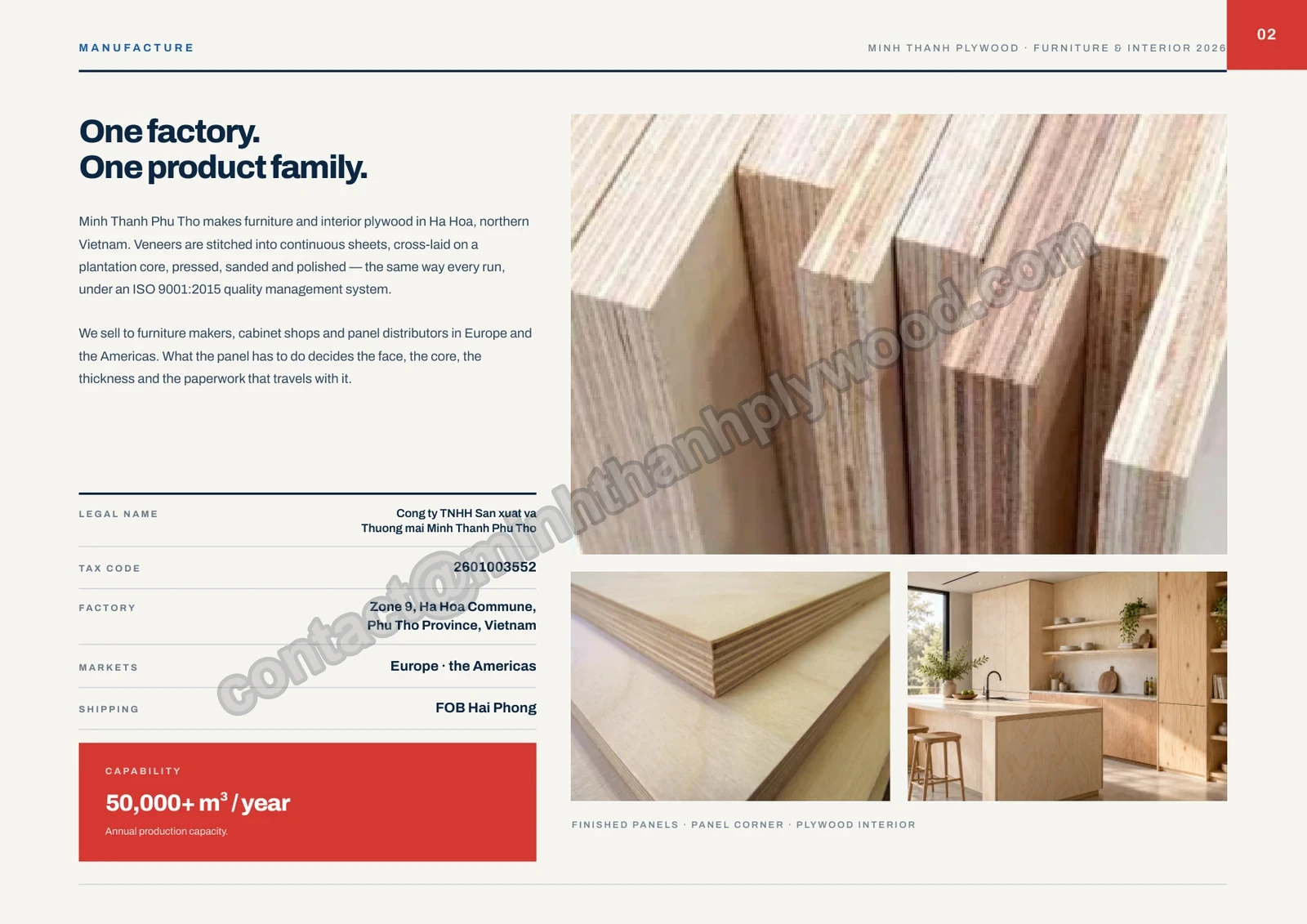

One factory, one product family: how panels are made in Ha Hoa, the 50,000+ m³ capacity and who buys them.

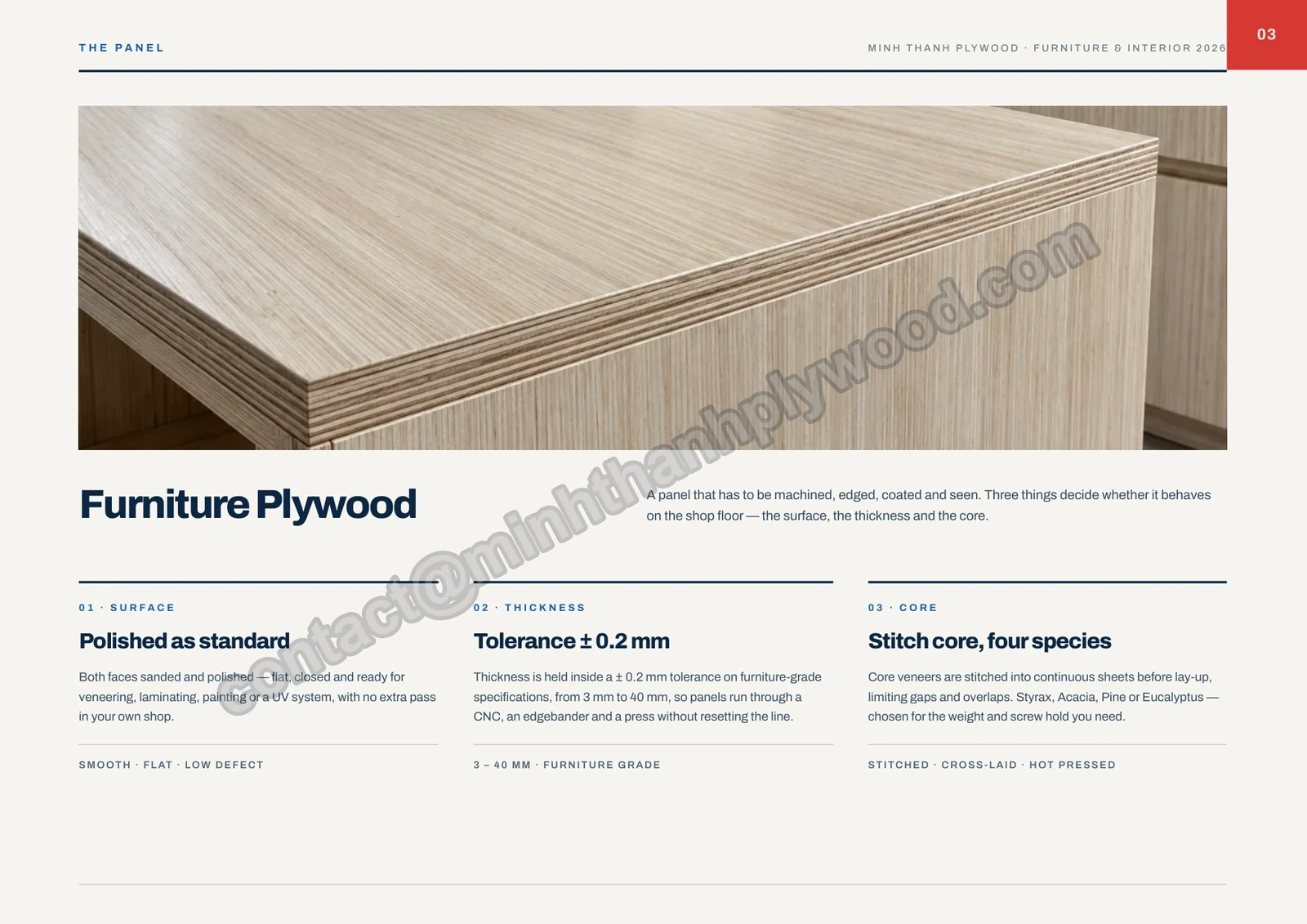

Polished faces, the thickness tolerance and the stitched core, and why each matters on a CNC line.

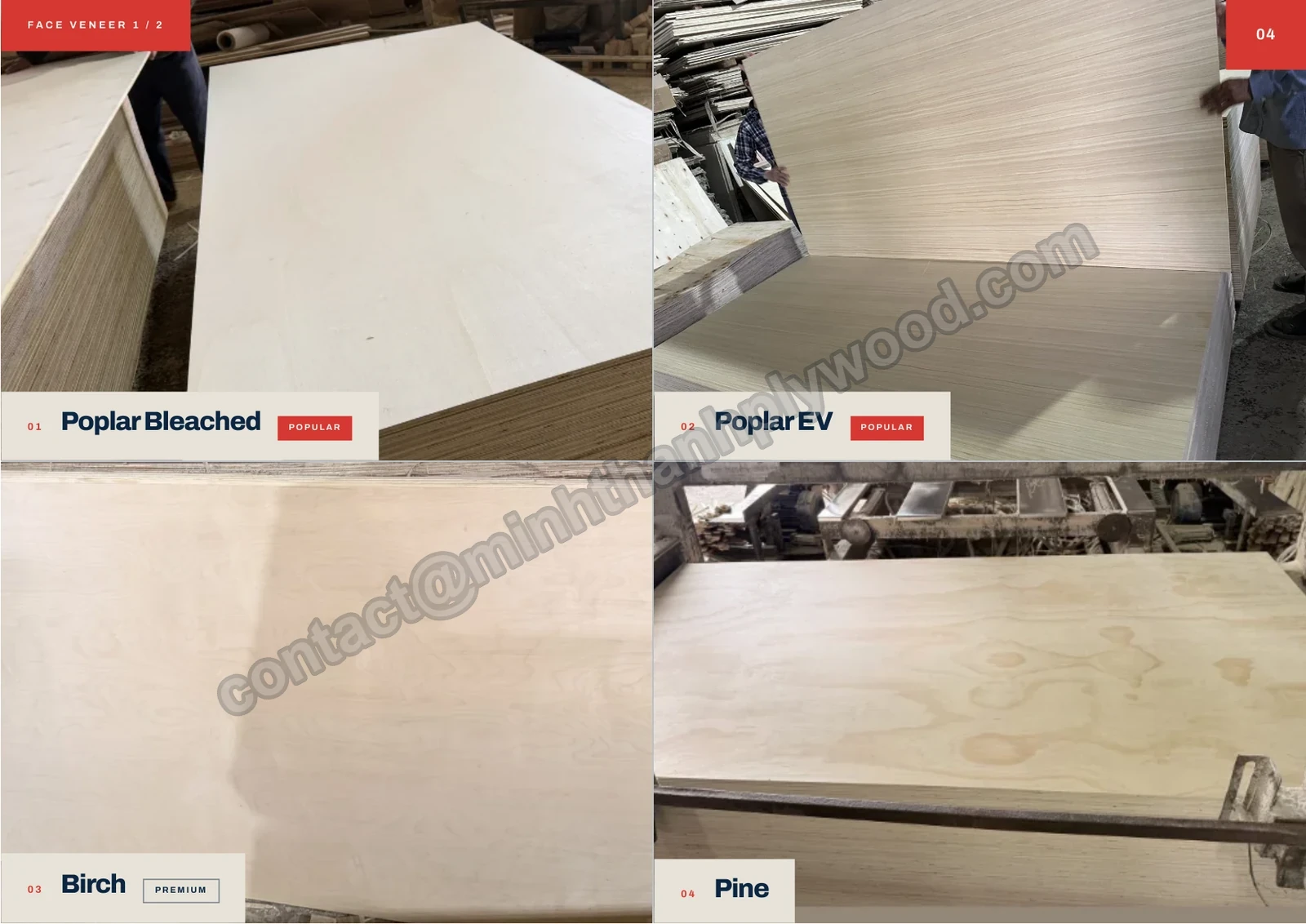

Poplar bleached, Poplar EV, Birch and Pine faces, each shown as a full sheet.

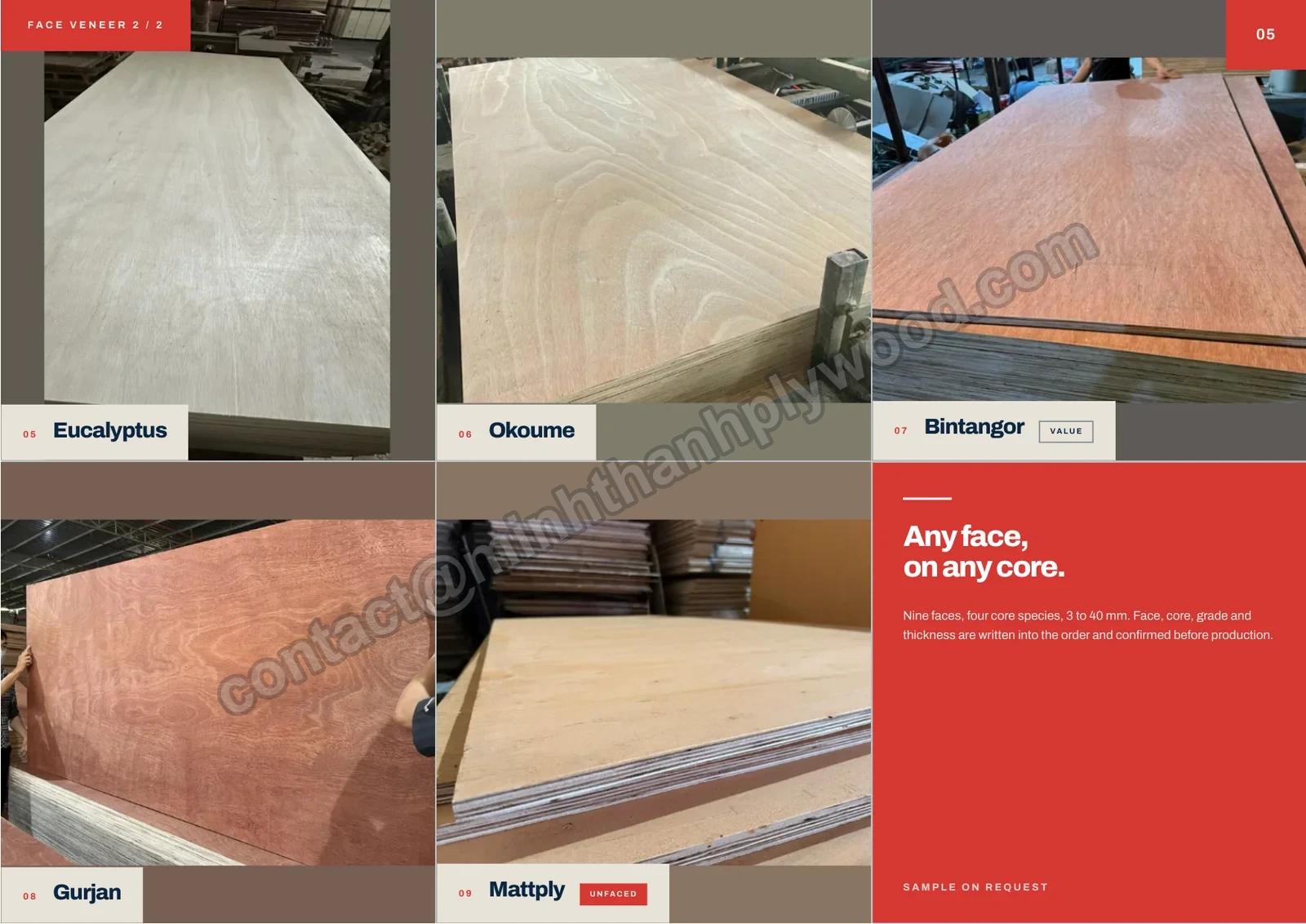

Eucalyptus, Okoume, Bintangor and Gurjan faces; any face goes on any core.

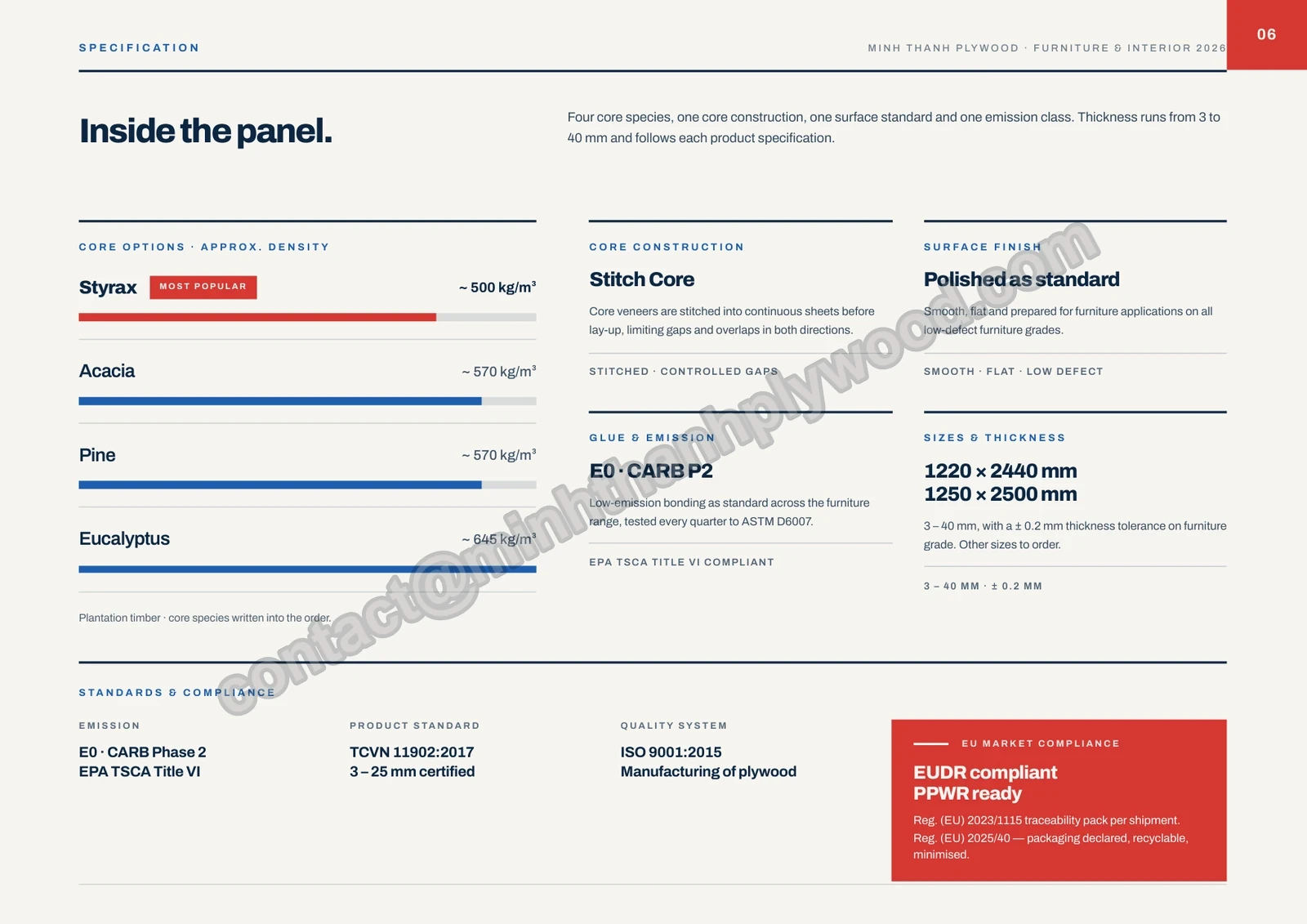

Core species with their densities, the stitch core, glue and emission, surface finish and sheet sizes.

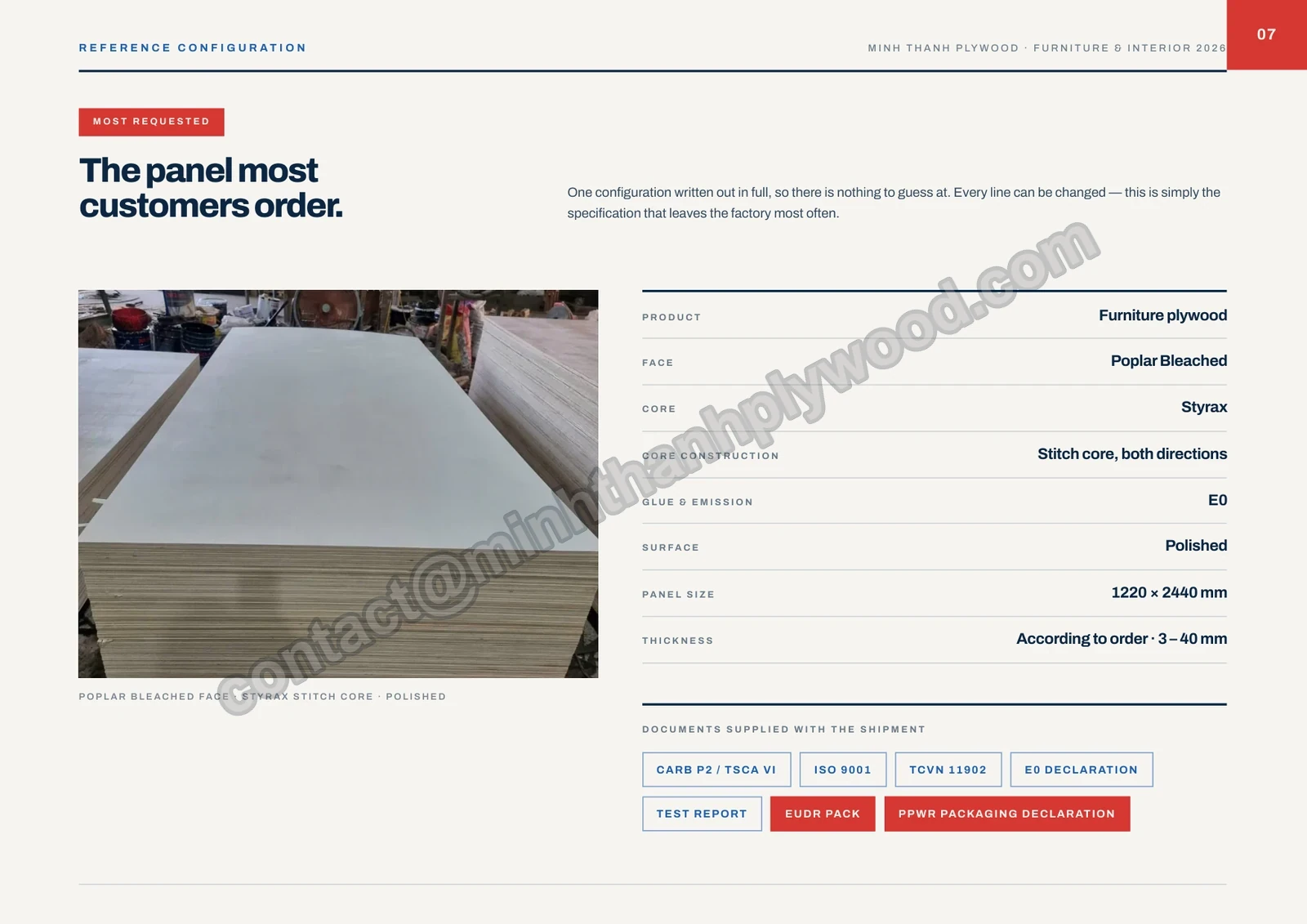

Poplar bleached face, Styrax stitch core, E0, polished, 1220 × 2440 mm: the panel most customers order, line by line.

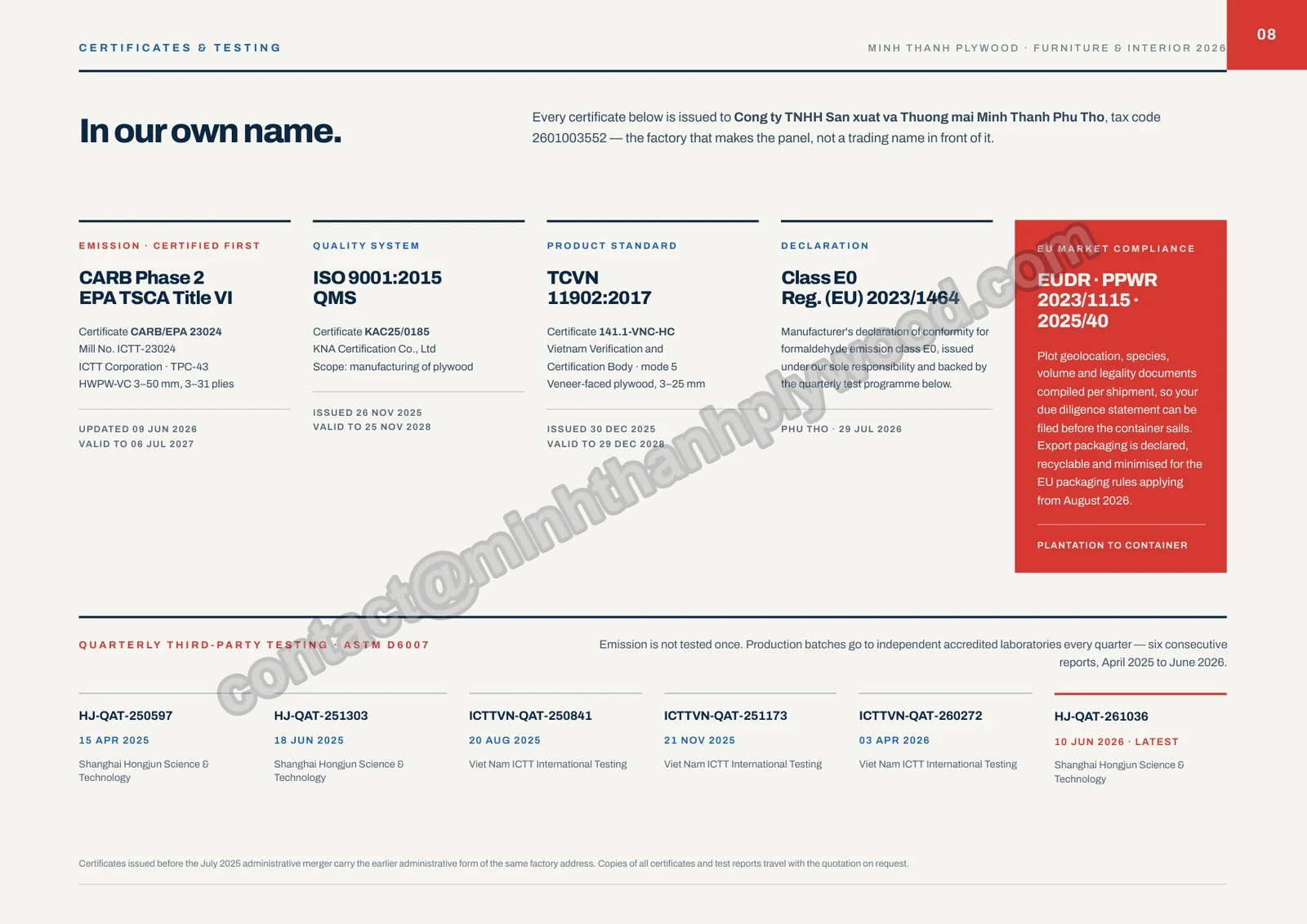

Numbers and scopes, the E0 declaration and the six quarterly ASTM D6007 test reports.

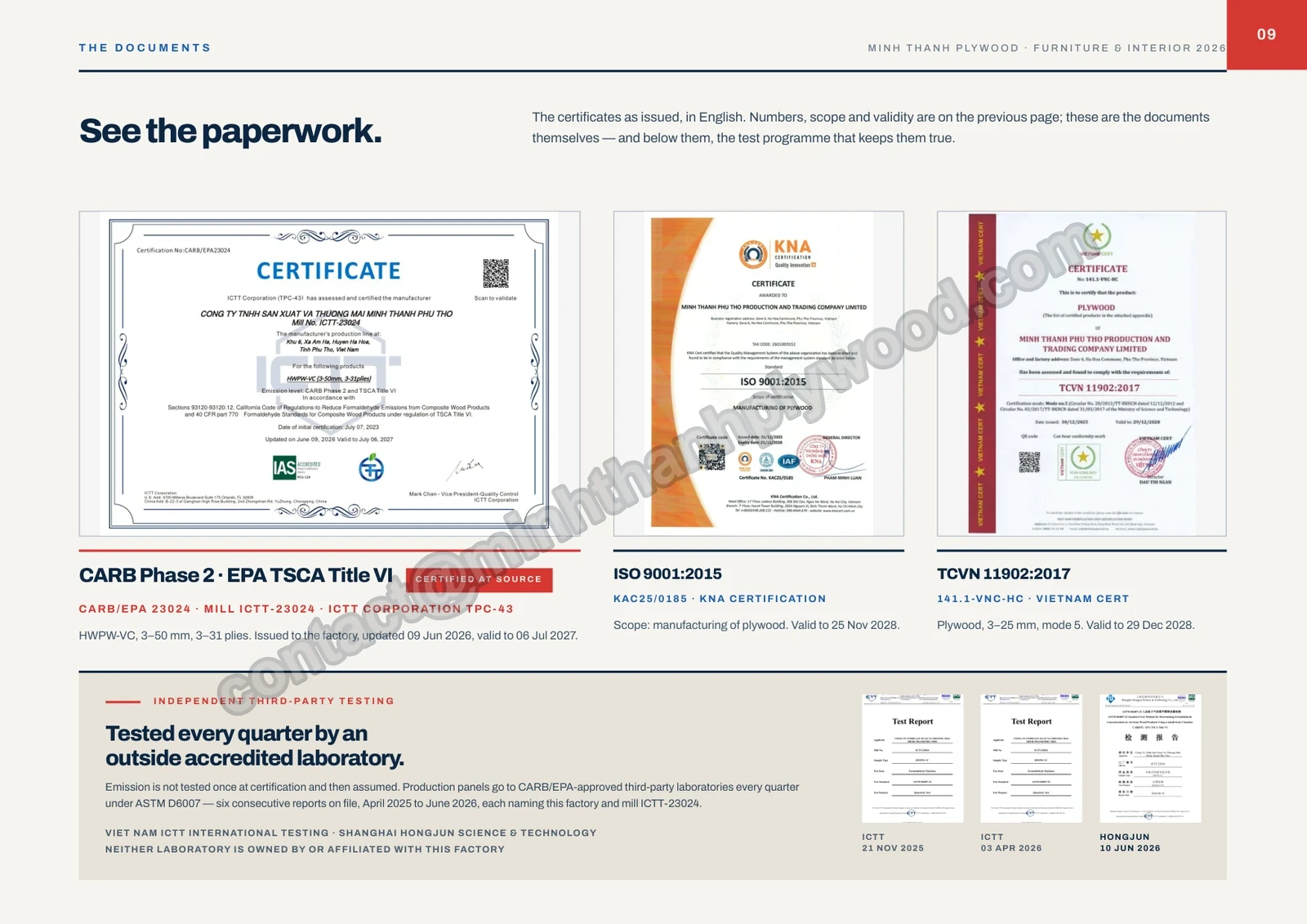

The documents as issued, and three of the quarterly test reports.

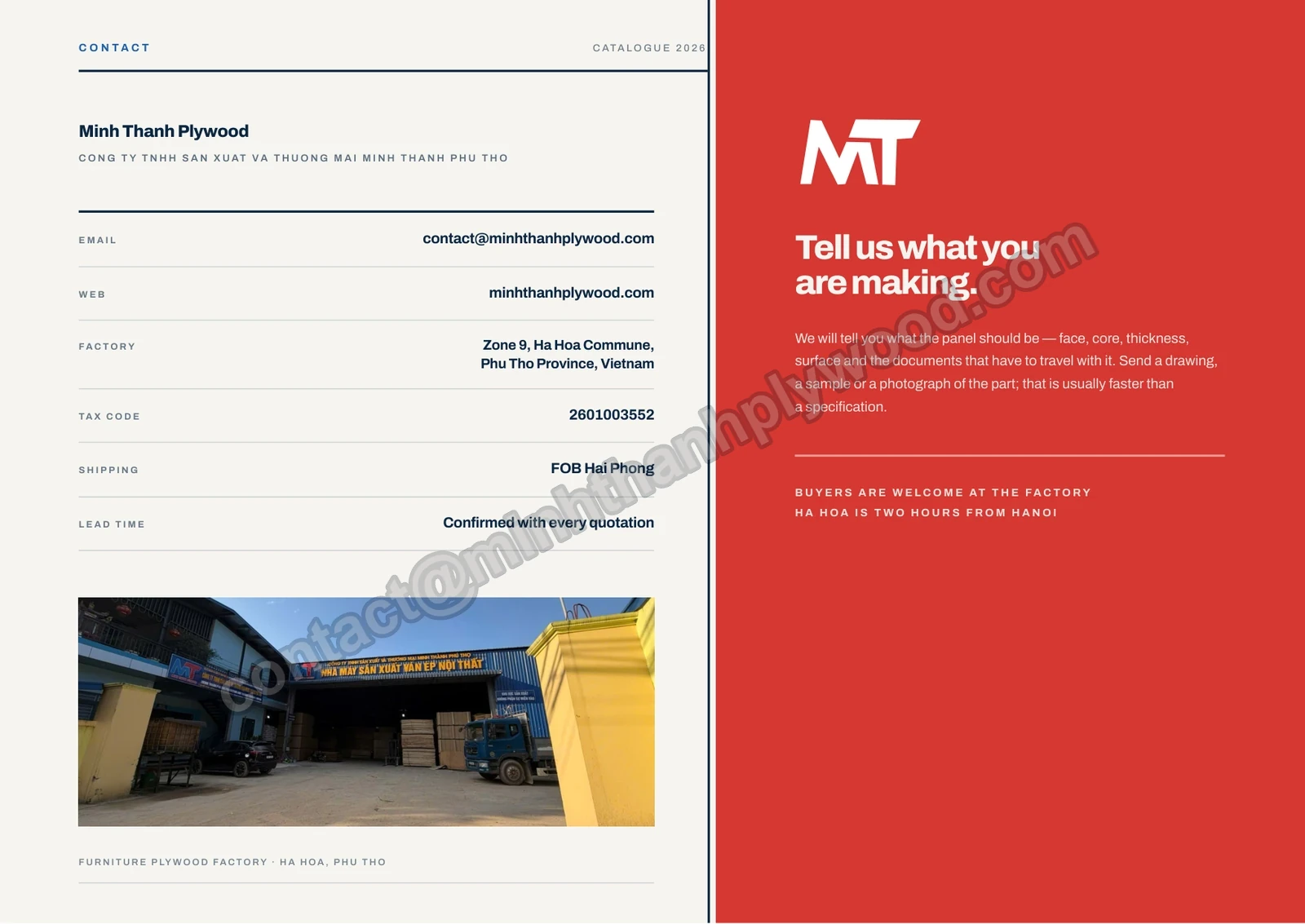

The export e-mail, shipping port and the factory gate, with an invitation to visit.
Real panels on video
These are panels from our own line in Ha Hoa, Phu Tho, filmed as they come off the stack. The factory makes 50,000+ m³ a year, and every shipment is photographed and filmed before loading, so you see your own panels the same way.
Specifications
This table is the catalogue in one view. Every line can be changed per order; the values below are what leaves the factory as standard.
| Faces | Poplar, EV (engineered veneer), Birch, Okoume, Pine, Eucalyptus, Bintangor, Gurjan; Sapele and others on request. |
|---|---|
| Cores | White Styrax (about 500 kg/m³) or Eucalyptus (650–750 kg/m³); Acacia and Pine on order. |
| Construction | Core layers stitched both ways; pressed twice (core board calibrated, then faces pressed on). |
| Thickness | 3–40 mm; thin 3–6 mm panels always 5-ply. |
| Sizes | 1220 × 2440 and 1250 × 2500 mm; 1220 × 2500, 1220 × 2280 and cut-to-size in 4, 6 or 8 pieces. |
| Tolerance | Down to ±0.2 mm on sanded furniture panels. |
| Moisture | 8–12 % at dispatch. |
| Glue | UF resin at E0 as standard; E1, MR (melamine-fortified) and phenolic WBP to order. |
| Emission class | E0 as standard, below the 0.05 ppm CARB Phase 2 limit in all six chamber tests. |
| Surface | Sanded and polished; both faces UV-ready. |
| MOQ and lead time | 1 × 40HC; 15–45 days of production after the deposit. |
| Payment and delivery | 30 % deposit, 70 % against the scanned B/L, by T/T or L/C at sight; FOB Hai Phong, CFR or CIF. |
Packing and loading
A 40HC of 18 mm Styrax-core plywood carries 990 sheets: 18 packs of 55 sheets, about 53 m³. Packs are 1,000 mm high on timber bearers, 16 lying in the box and 2 standing at the door end.
Swipe the table sideways to see every column →
| Thickness | Sheets per pack | Packs per 40HC | Sheets per 40HC | m³ | Panels + packing (t) |
|---|---|---|---|---|---|
| 9 mm | 111 | 18 | 1,998 | 53.5 | 27.8 |
| 12 mm | 83 | 18 | 1,494 | 53.4 | 27.7 |
| 15 mm | 66 | 18 | 1,188 | 53.0 | 27.5 |
| 18 mm | 55 | 18 | 990 | 53.0 | 27.5 |
A Eucalyptus core reaches the payload before the box is full: at 650 kg/m³ and the same packing allowance, a 40HC carries about 41 m³. Packs are covered top and bottom, corner-guarded and strapped, and each pack holds one specification.
Work out your own loadCertificates and documents
Each certificate below is held by the factory in its own name; pages 8 and 9 of the PDF show them as issued. The full files travel with your quotation.
Certificate KAC25/0185, quality management for plywood manufacturing.
Certificate 141.1-VNC-HC for veneer-faced plywood.
Six third-party tests, April 2025 to June 2026, on 9, 15 and 18 mm panels: 0.014–0.032 ppm against the 0.05 ppm CARB Phase 2 limit.
SGS, September 2026, Regulation (EU) 2025/40: lead, cadmium, mercury and chromium VI not detected in all four packing materials, PASS against 100 mg/kg.
Official rule ↗Origin records and geolocation files for every order under Regulation (EU) 2023/1115.
Official rule ↗Download and editions
The PDF opens straight away and is yours to forward to purchasing, design and quality teams. Below is what the catalogue leaves to the quotation, and how to get it fast.
The catalogue is written in English, the language of our quotations, packing lists and test reports, so its terms match your documents line for line. The 2026 edition was last updated on 6 October 2026.
We re-issue the PDF when a specification or test result changes, under the same file name. The download link above always opens the latest edition, so a saved link never goes out of date.
Every panel in the catalogue is made for your order, to your face, core, glue and thickness. Production takes 15–45 days after the deposit; the reference configuration on page 7 is the one the line runs most often.
Face, core, glue, thickness, size, quantity and port each move the price per m³, so a printed list would be wrong for most buyers. As a guide, furniture plywood starts from US$350/m³ (October 2026).
Send the face, core, thickness, size, glue, quantity and destination port, or a drawing of the part. The export team replies with the price per m³, the lead time and the sheets per 40HC, usually within hours.
Free samples of the faces and cores in the catalogue. Tell us which pages you are looking at, and we cut samples from the same production.
FAQ
Yes. The Minh Thanh plywood catalogue PDF downloads directly from this page, with no form, e-mail field or sign-up. It is 10 pages, A4 horizontal and 1.6 MB.
Furniture and interior plywood: eight face veneers shown as full sheets, the core species and their densities, 3–40 mm thicknesses at ±0.2 mm, sheet sizes, the reference configuration and the compliance pages.
No. The price per m³ depends on face, core, glue, thickness, size, quantity and port, so we quote each specification. Furniture plywood starts from US$350/m³ (October 2026).
These lines are quoted from their product pages rather than the PDF, because their faces, glues and grades follow the use. Send the specification and we reply with a price and data sheet.
Yes. Free samples of every face and core in the catalogue. Tell us the page and the thickness, and we cut them from current production.
Yes. Every certificate, the latest ASTM D6007 test report, the SGS PPWR report and the EUDR dossier are e-mailed with your quotation as PDF files.
The 2026 edition was last revised on 6 October 2026, the edition date shown under the download button. Each revision is a new test result or specification line, and the PDF link on this page stays the same.
Next step
Application, core, glue and emission class, face, size, thickness, packing and quantity, plus your destination port, are enough for a price, a lead time and a loading plan. Lisa and the export team reply within hours, Monday to Friday, 08:00–17:00 Vietnam time.
